Production

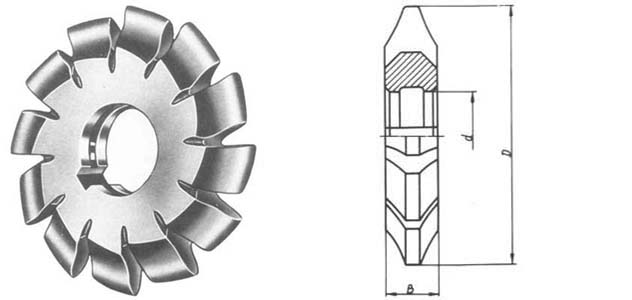

The face-and-side tooth module cutters are produced in a set. Up to module 8 inclusively the set consists of cutters of 8 numbers. From module 9 to module 16 — cutters of 15 numbers. Cutters with corresponding number of the set cuts a gear wheel with number of teeth.
Way of ordering:
Cutters face-and-side tooth-cutting
m — set of 8 or
m — No. of the cutter
Way of ordering:
Cutters face-and-side tooth-cutting
m — set of 8 or
m — No. of the cutter

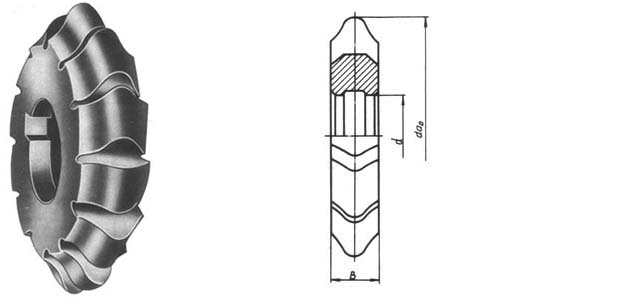

Cutters for Sprocket Wheel BDS 6933-76 HSS N: 0702
The face-and-side tooth-cutting cutters for chain gear wheels are produced in sets of five numbers. Each number of cutter is designated for milling of a chain gear wheel with a determined number of teeth.
Way of ordering:
A cutter for chain gear wheels T-chain - Dp.
No, of cutter or the set.
Way of ordering:
A cutter for chain gear wheels T-chain - Dp.
No, of cutter or the set.

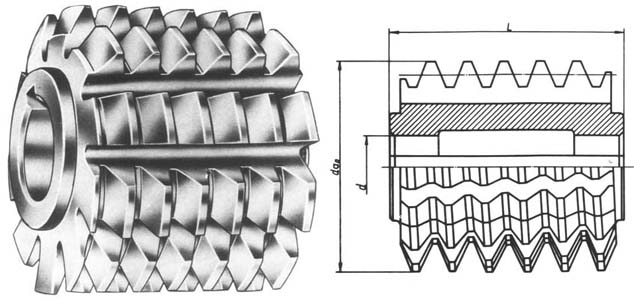

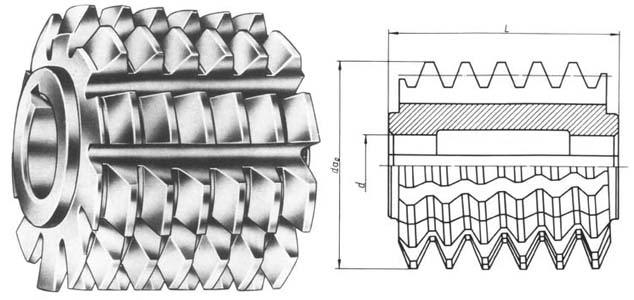

Single-Threaded Worm Gear Hobs BDS 11579-73 HSS N: 0703
The Hobs are produced with a class of precision B and C and with an angle of mesh = 20 degree.
Way of ordering: hobs worm single-thread for a final cutting m. (class of precision).

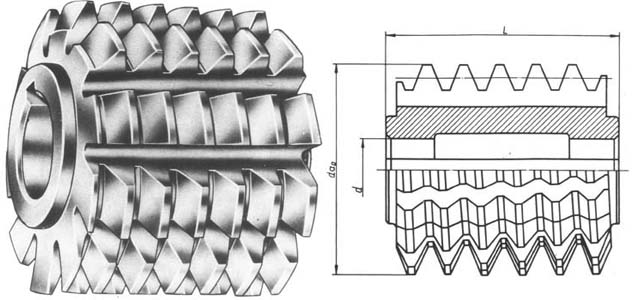

Single-Threaded Worm Gear Hobs BDS 11579-73 HSS N: 0704
The Hobs are produced with a class of precision B and an angle of mesh = 20 degree.
Way of ordering: hobs worm single-threaded for a preliminary cutting (prior to grinding) - m.
Way of ordering: hobs worm single-threaded for a preliminary cutting (prior to grinding) - m.
Single-Threaded Worm Gear Hobs BDS 11579-73 HSS N: 0705
The Hobs are produced with a class of precision B and a ground profile of the teeth.
Way of ordering: hobs worm single-threaded for a preliminary cutting (prior to shaving) - m.
Way of ordering: hobs worm single-threaded for a preliminary cutting (prior to shaving) - m.

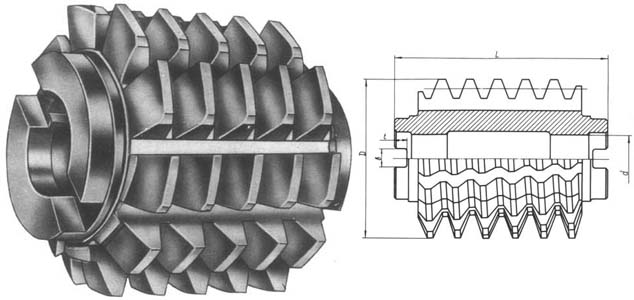

Single-Threaded Worm Gear Hobs DIN 8002 HSS N: 0706
The Hobs are produced with a class of precision B and a ground profile of the teeth.
Way of ordering: hobs worm single-threaded for a final cutting. Version "A". DIN 8002. m. class B
Way of ordering: hobs worm single-threaded for a final cutting. Version "A". DIN 8002. m. class B
Single-Threaded Worm Gear Hobs DIN 8002 HSS N: 0707
The Hobs are produced with a class of precision B and a ground profile of the teeth.
Way of ordering: hobs worm single-threaded for a final cutting. Version "B". DIN 8002. m. class B.
Way of ordering: hobs worm single-threaded for a final cutting. Version "B". DIN 8002. m. class B.

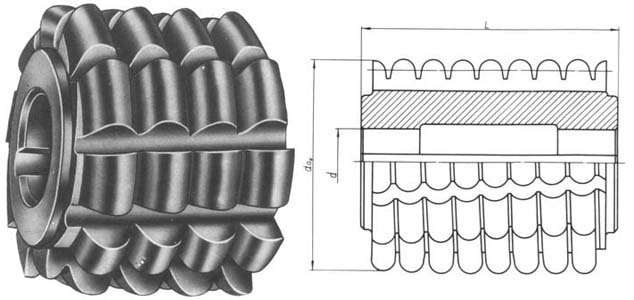

Single-Threaded Worm Gear Hobs BDS 12411-74 HSS N: 0708
Related to chains with long pitches.
Way of ordering: hobs worm gear for chain gear wheels – T-chain (in inches).Dp.
Way of ordering: hobs worm gear for chain gear wheels – T-chain (in inches).Dp.

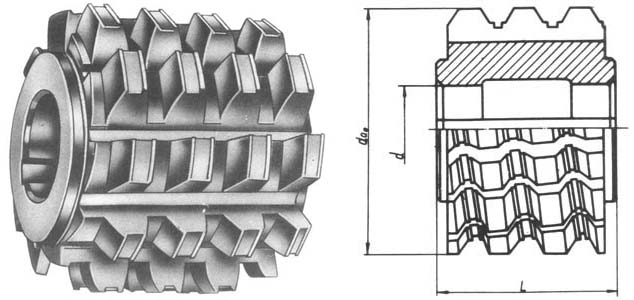

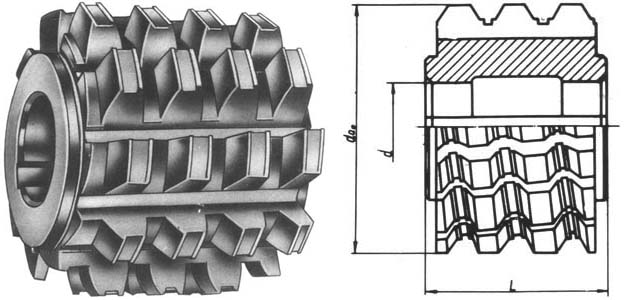

Worm Gear Hobs BDS 15111-80 HSS N: 0709
The hobs are produced with a ground profile.
Way of ordering: hobs worm gear for preliminary cutting of straight-walled spline shafts - light series.
Z x d x D – d – for centering the spline shaft relative to the inside diameter or Z x d x D – D - for centering the spline shaft relative to the outside diameter.
Way of ordering: hobs worm gear for preliminary cutting of straight-walled spline shafts - light series.
Z x d x D – d – for centering the spline shaft relative to the inside diameter or Z x d x D – D - for centering the spline shaft relative to the outside diameter.
Worm Gear Hobs BDS 15111-80 HSS N: 0710
The hobs are produced with a ground profile. 1 – for spline shafts with a centering relative to the inner diameter – d. 2 - for spline shafts with a centering relative to the outside diameter – D.
Way of ordering: hobs worm gear for preliminary cutting of straight-walled spline shafts – intermediate series – Z x d x D – d.
Way of ordering: hobs worm gear for preliminary cutting of straight-walled spline shafts – intermediate series – Z x d x D – d.
Worm Gear Hobs BDS 15111-80 HSS N: 0711
The hobs are produced with a ground profile.
Way of ordering: hobs worm gear for final cutting of straight-walled spline shafts – light series:
Z x d x D – for centering of the spline shaft relative to the outside diameter and the side walls of the splines – running fit;
Z x d x D – for centering the spline shaft relative to the outside diameter and the side walls of the splines – free-running fit;
Z x d x D – for centering of the spline shaft relative to the outside diameter and the side walls of the splines - slide fit;
Z x d x D – for centering of the spline shaft relative to the inside diameter and the side walls of the splines - running fit;
Z x d x D – for centering of the spline shaft relative to the inside diameter and the side walls of the splines – free-running fit.
Way of ordering: hobs worm gear for final cutting of straight-walled spline shafts – light series:
Z x d x D – for centering of the spline shaft relative to the outside diameter and the side walls of the splines – running fit;
Z x d x D – for centering the spline shaft relative to the outside diameter and the side walls of the splines – free-running fit;
Z x d x D – for centering of the spline shaft relative to the outside diameter and the side walls of the splines - slide fit;
Z x d x D – for centering of the spline shaft relative to the inside diameter and the side walls of the splines - running fit;
Z x d x D – for centering of the spline shaft relative to the inside diameter and the side walls of the splines – free-running fit.
Worm Gear Hobs BDS 15111-80 HSS N: 0712
The hobs are produced with a ground profile.
Way of ordering: hobs worm gear for final cutting of straight-walled spline shafts – intermediate series:
Z x d x D – for centering of the spline shaft relative to the outside diameter and the side walls of the splines – running fit;
Z x d x D – for centering the spline shaft relative to the outside diameter and the side walls of the splines – free-running fit;
Z x d x D – for centering of the spline shaft relative to the inside diameter and the side walls of the splines - slide fit;
Z x d x D – for centering of the spline shaft relative to the inside diameter and the side walls of the splines - running fit;
Z x d x D – for centering of the spline shaft relative to the inside diameter and the side walls of the splines – free-running fit.
Way of ordering: hobs worm gear for final cutting of straight-walled spline shafts – intermediate series:
Z x d x D – for centering of the spline shaft relative to the outside diameter and the side walls of the splines – running fit;
Z x d x D – for centering the spline shaft relative to the outside diameter and the side walls of the splines – free-running fit;
Z x d x D – for centering of the spline shaft relative to the inside diameter and the side walls of the splines - slide fit;
Z x d x D – for centering of the spline shaft relative to the inside diameter and the side walls of the splines - running fit;
Z x d x D – for centering of the spline shaft relative to the inside diameter and the side walls of the splines – free-running fit.

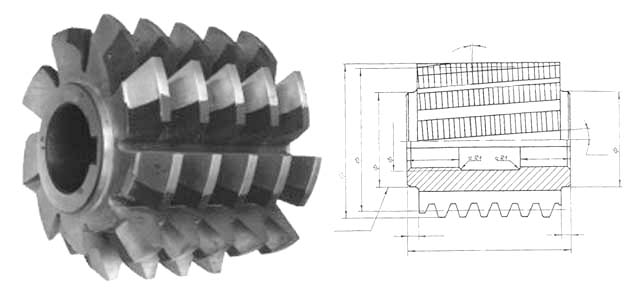

Multi - Threaded Worm Gear Hobs HSS
Way of ordering: multi - threaded worm gear hobs for cylindrical gear - with angle of mesh - 15 - 30 degree, M from М 0,5 toМ 24
