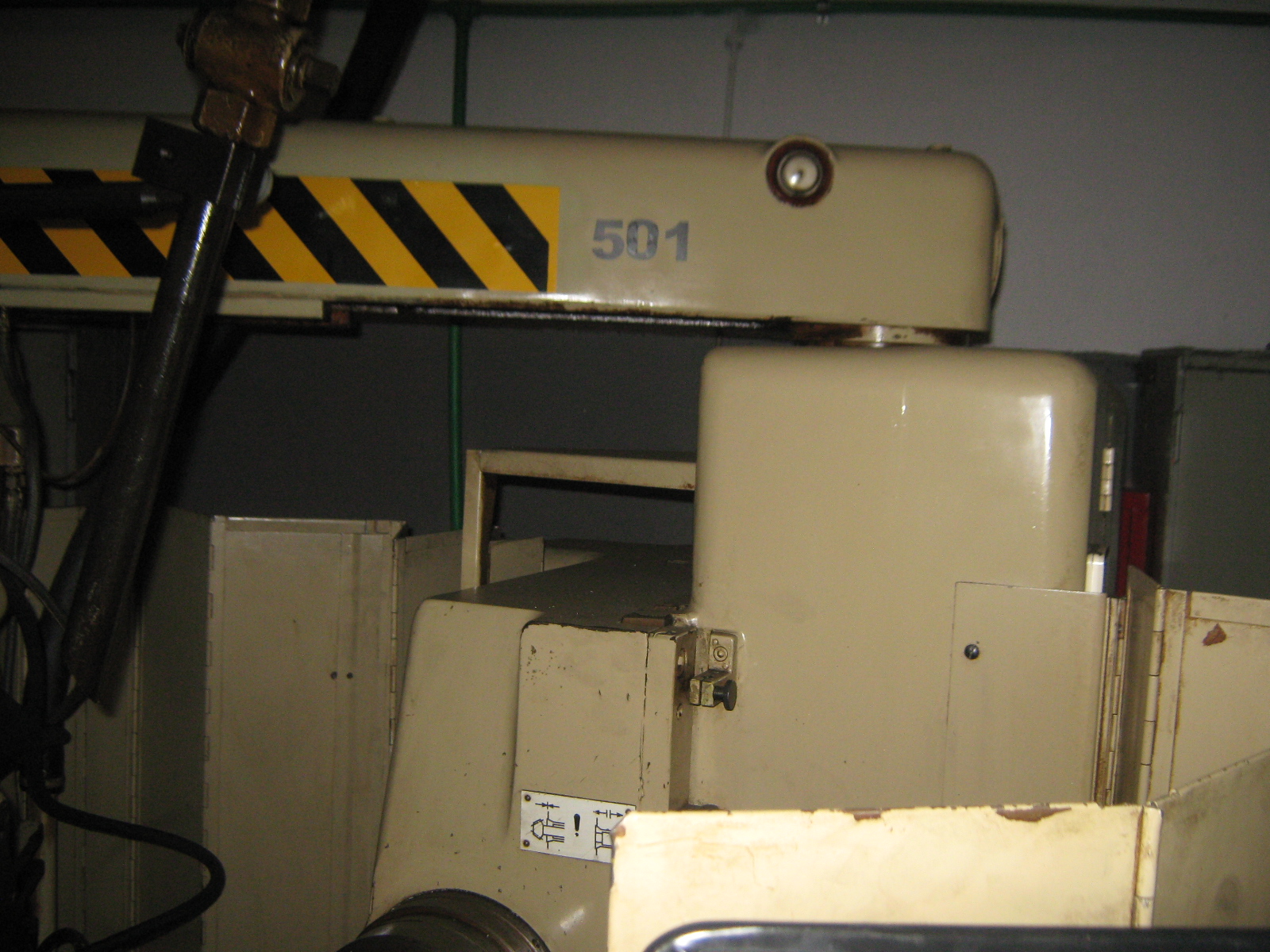

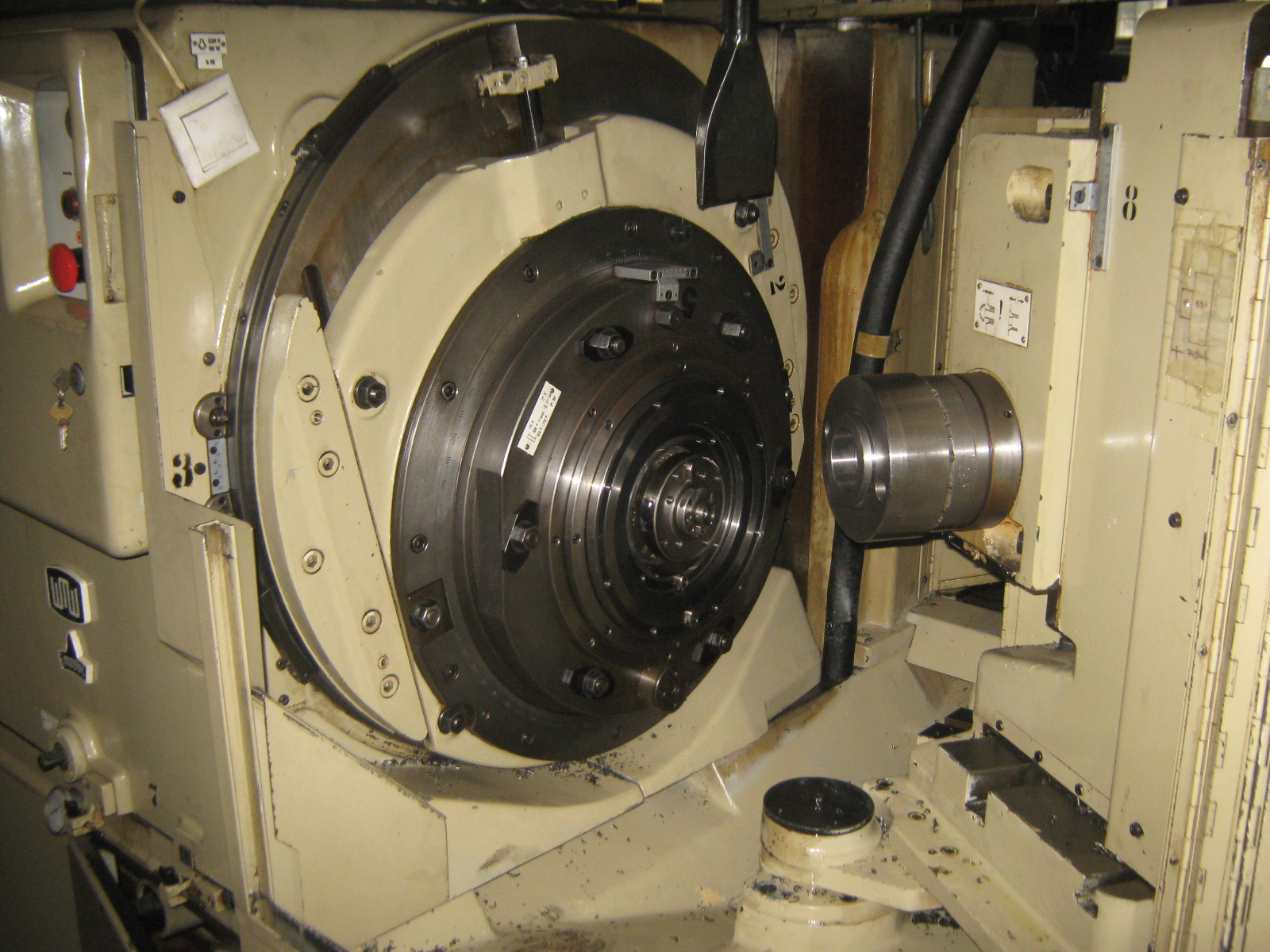

PACKAGE SALE ONLY:

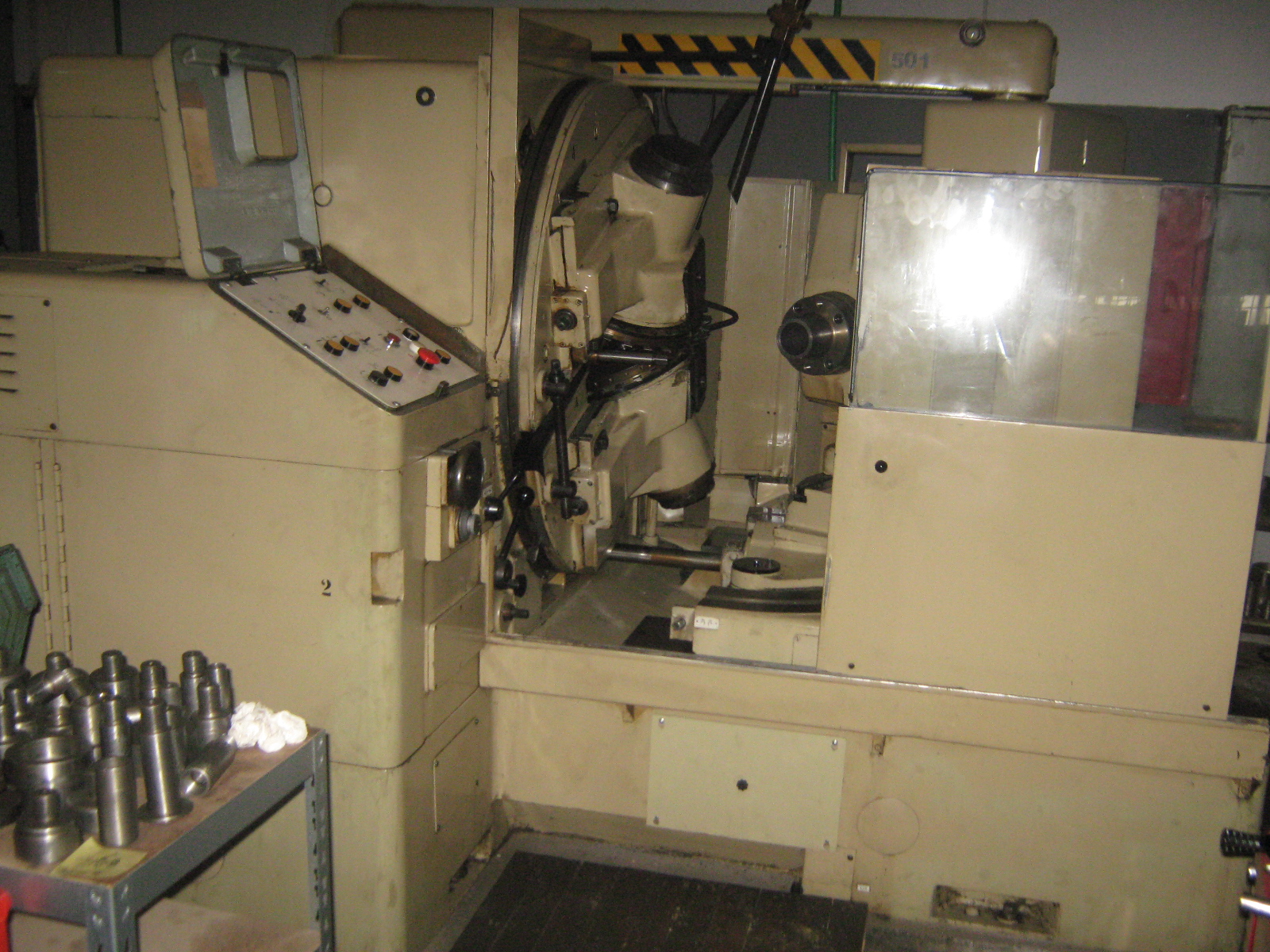

1. Bevel Gear Generator - Straight, MODUL ZFTK 500x10/I
workpiece diameter 500 mm
max. gear width 71 mm
max. module 10
cone distance 250 mm
number of teeth 6 - 100
pressure angle 15 - 30 °
min/max. pitch cone angle 0 - 90 °
milling head speed 28 - 56 U/min
blade cutter head diameter 450 mm
radial adjustment 30 - 220 mm
gear feeds (infintely stepless variable) 0,63 - 2,5 mm/sec
total power requirement 12 kW
weight of the machine ca. 11 t

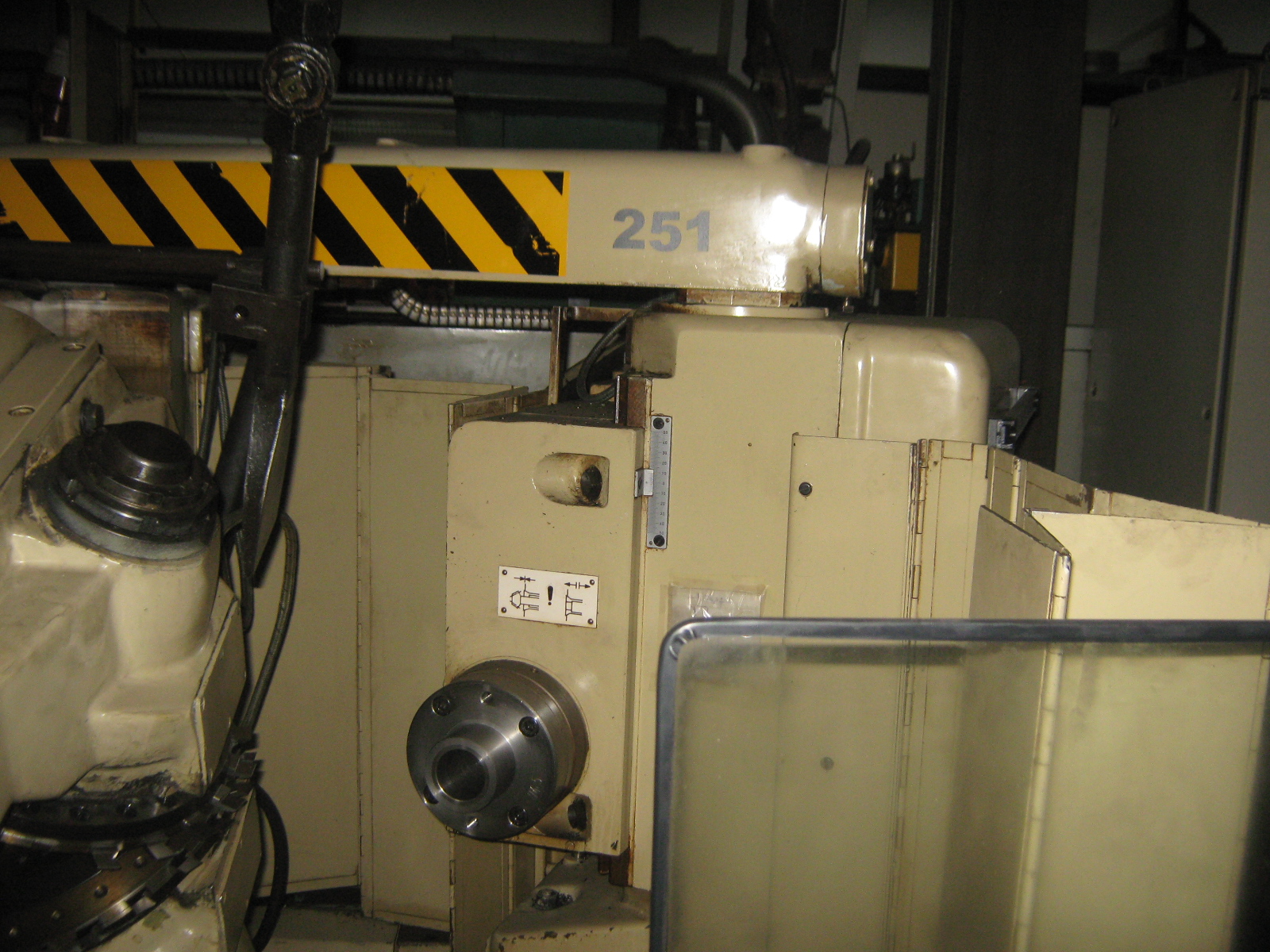

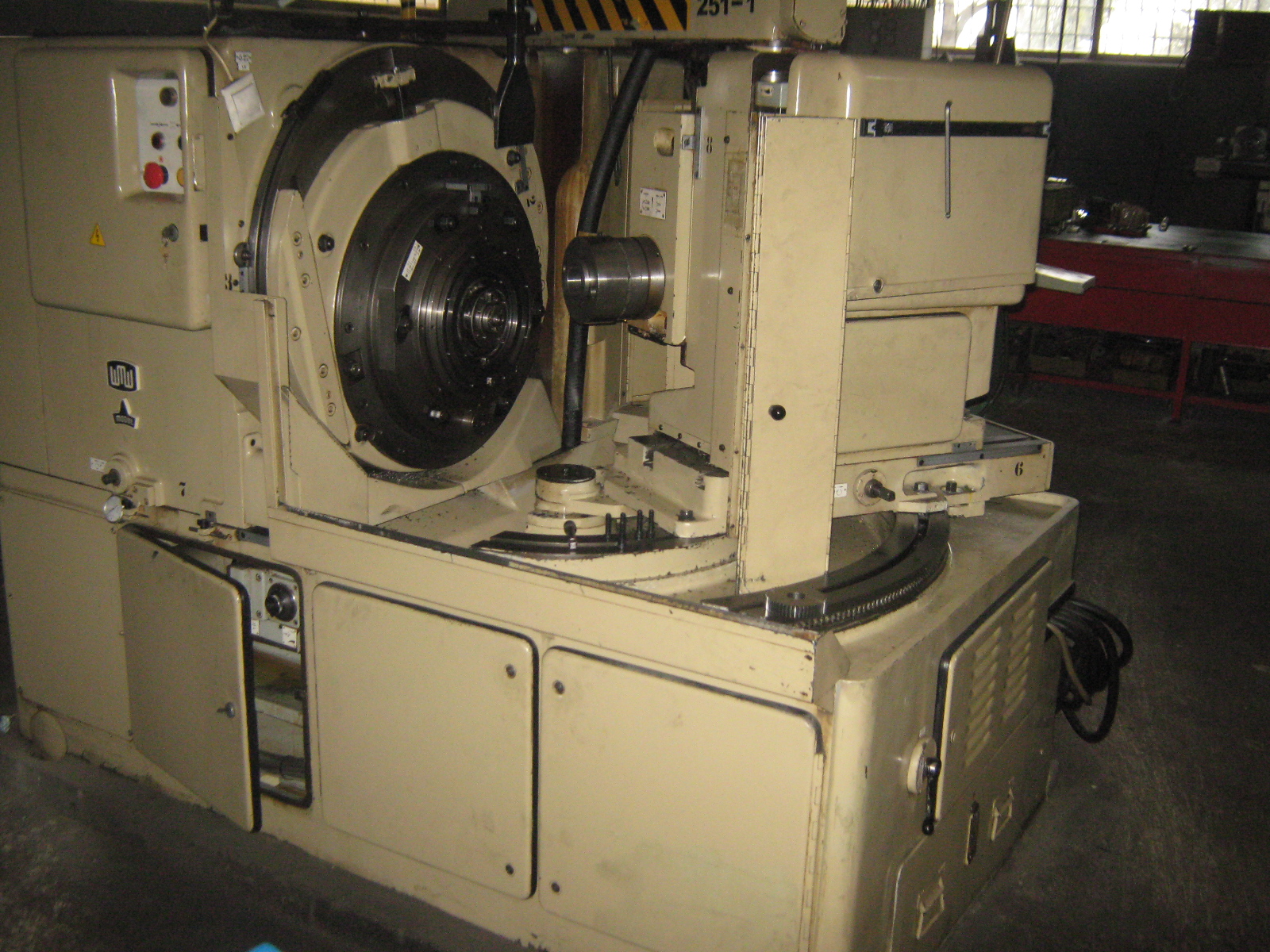

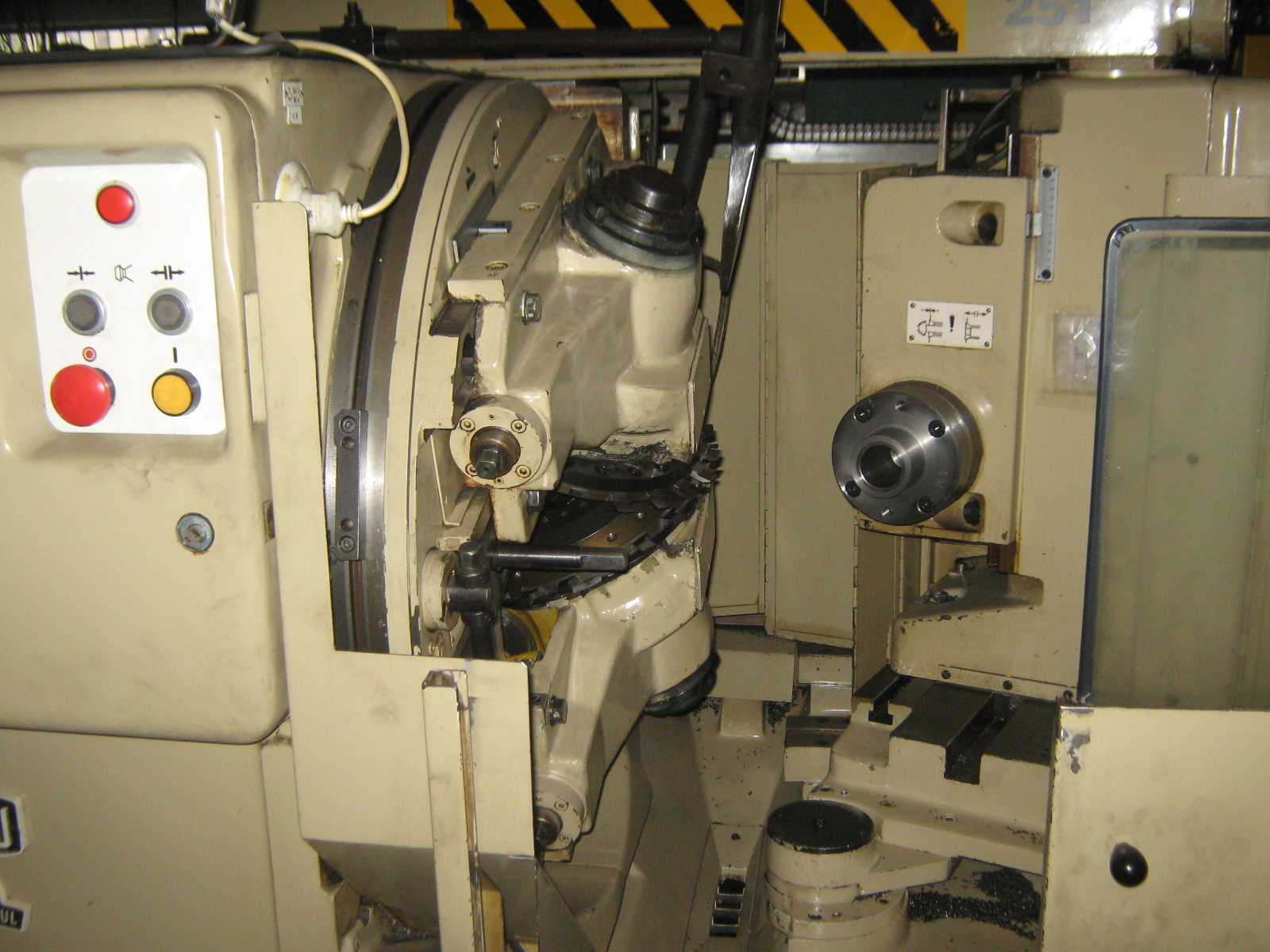

2. Bevel gear Generator- Straight, WMW MODUL ZFTK 250x5
Max. diameter of the gear wheel 250 mm
Max. module 7 mm
Min/max. number of teeth 6/100
Max. gear ratio 1:6
Max. gear width 40 mm
Cutting speed 35,5 - 71 rot/min
Radial adjustment of the milling head 0 - 110 mm
Diameter of the milling head 355 mm
Net weight of the machine 8600 kg
3. Bevel gear Generator - Spiral, WMW MODUL ZFTKK 500x10
Max. diameter of the gear wheel 500 mm in gear ratio 1:10
Max. diameter of the gear wheel 355 mm in gear ratio 1:1
Max. module 13 mm
Min/max. number of teeth 6/100
Max. gear width 71 mm
Spindle 28-112 rpm
9 kW
Net weight of the machine 10000 kg
4. Bevel gear Generator - Spiral, WMW MODUL ZFTKK 250x5
Max. diameter of the gear wheel 250 mm in gear ratio 1:10
Max. diameter of the gear wheel 175 mm in gear ratio 1:1
Max. module 8 mm
Min/max. number of teeth 6/100
Max. gear width 40 mm
Spindle 45-180 rpm
7,2 kW
Net weight of the machine 6000 kg

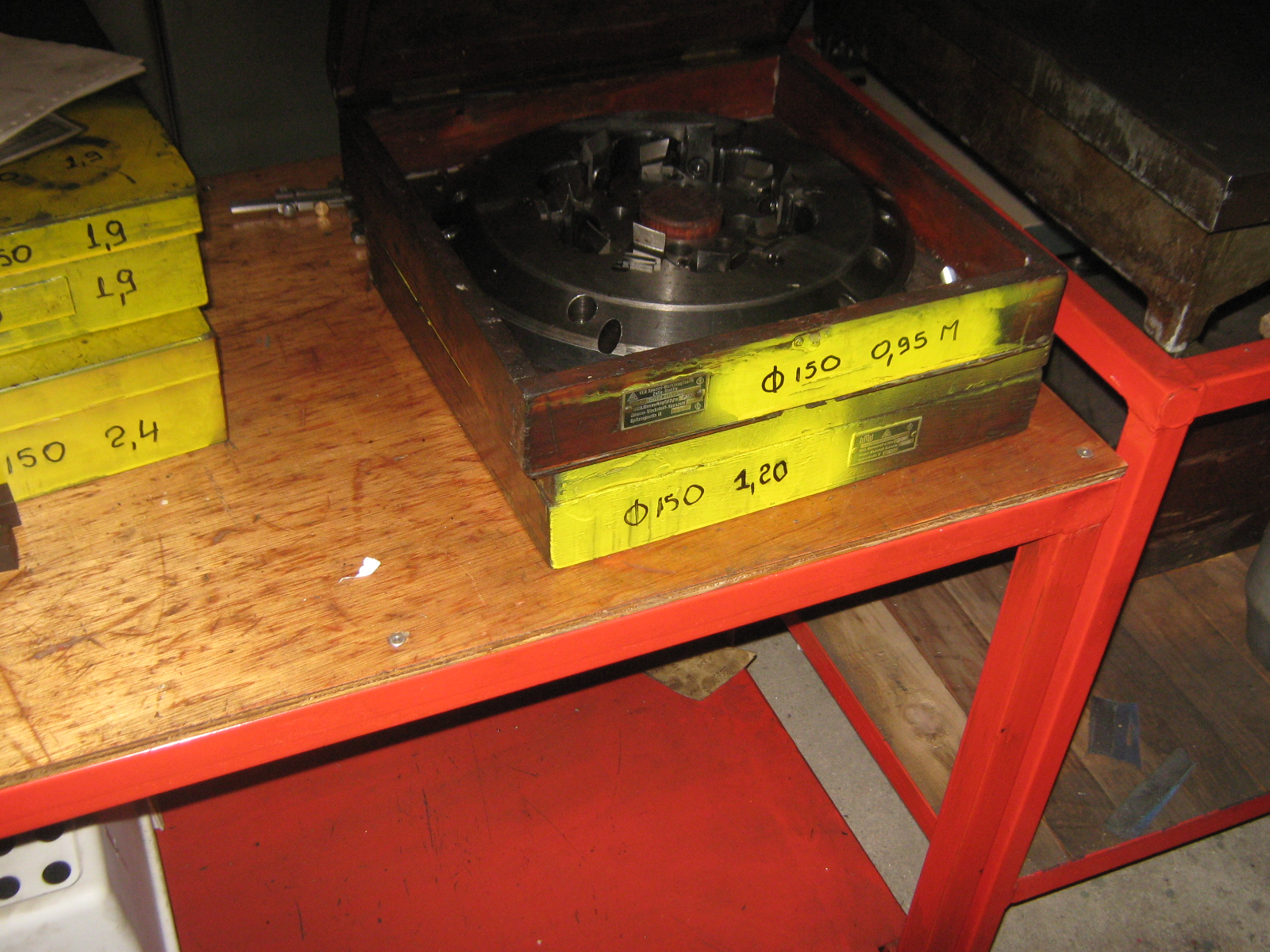

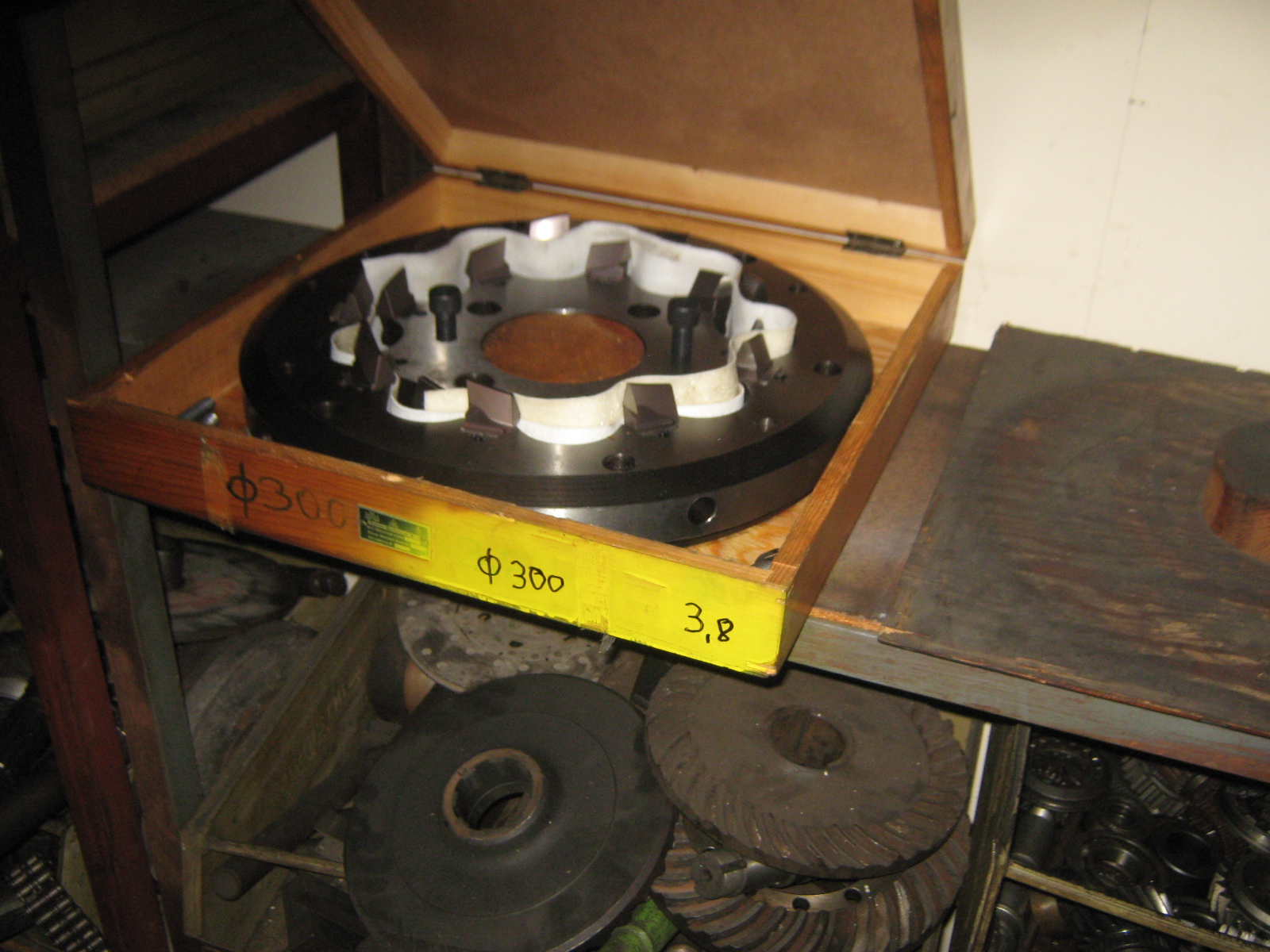

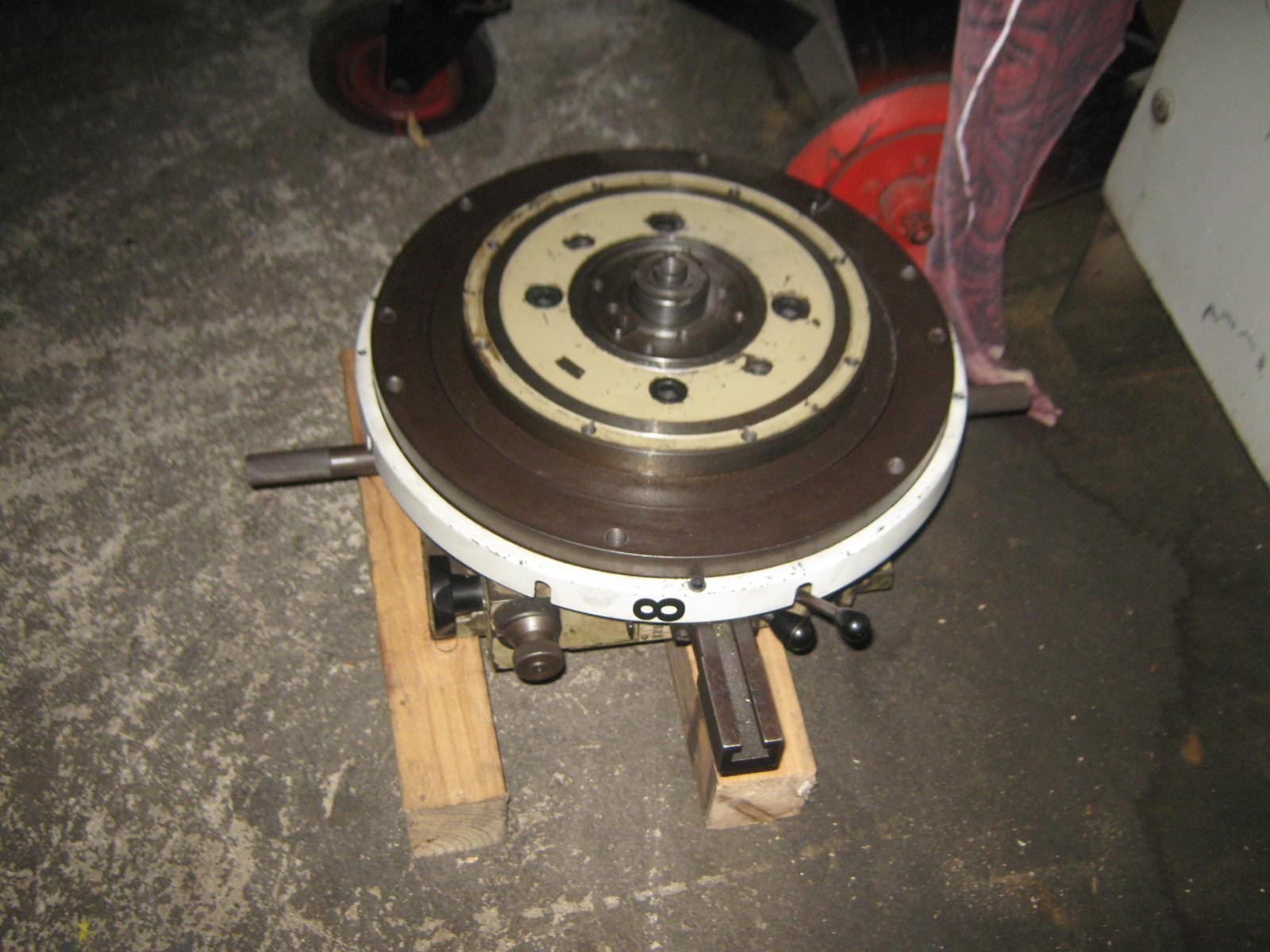

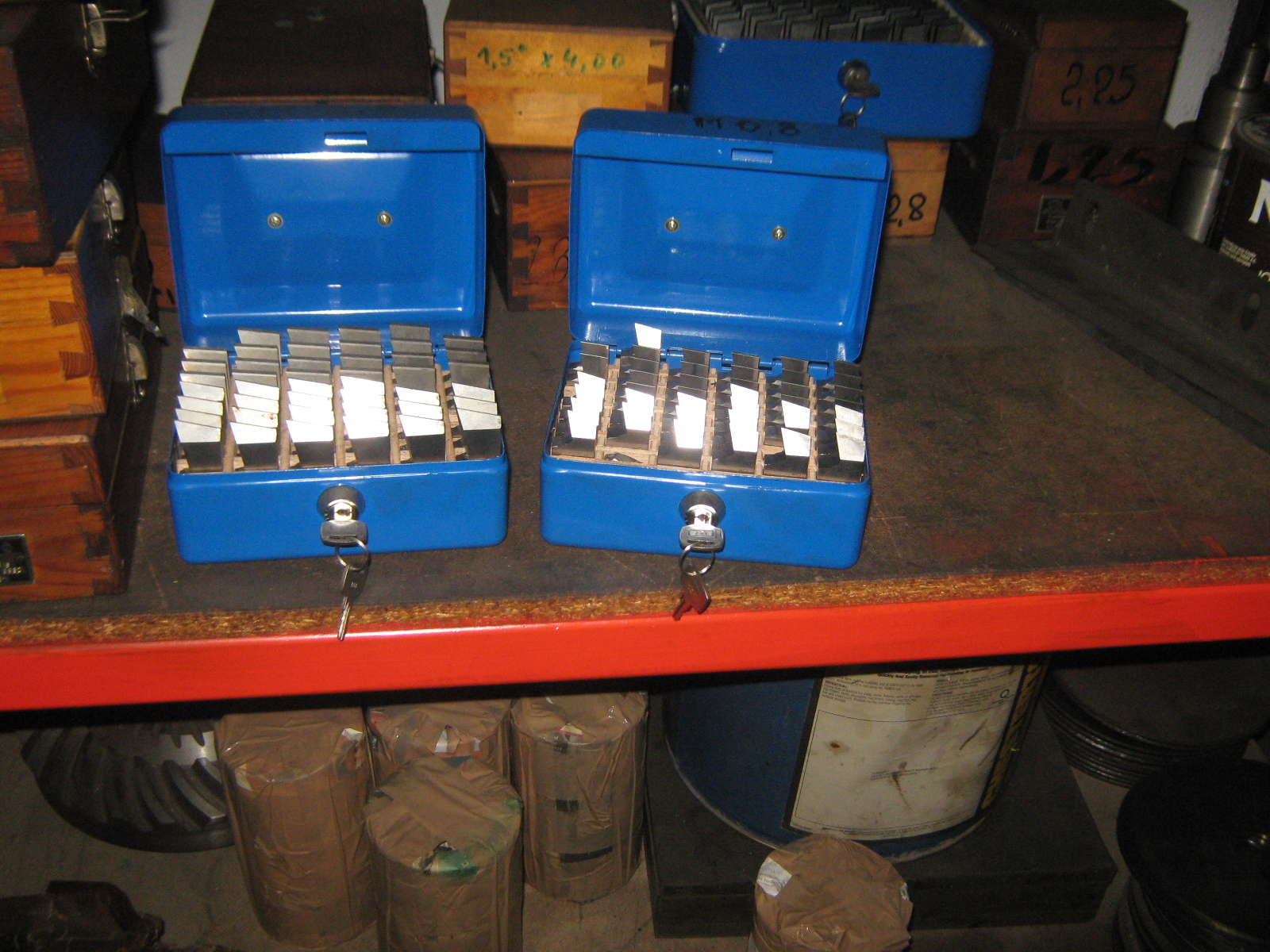

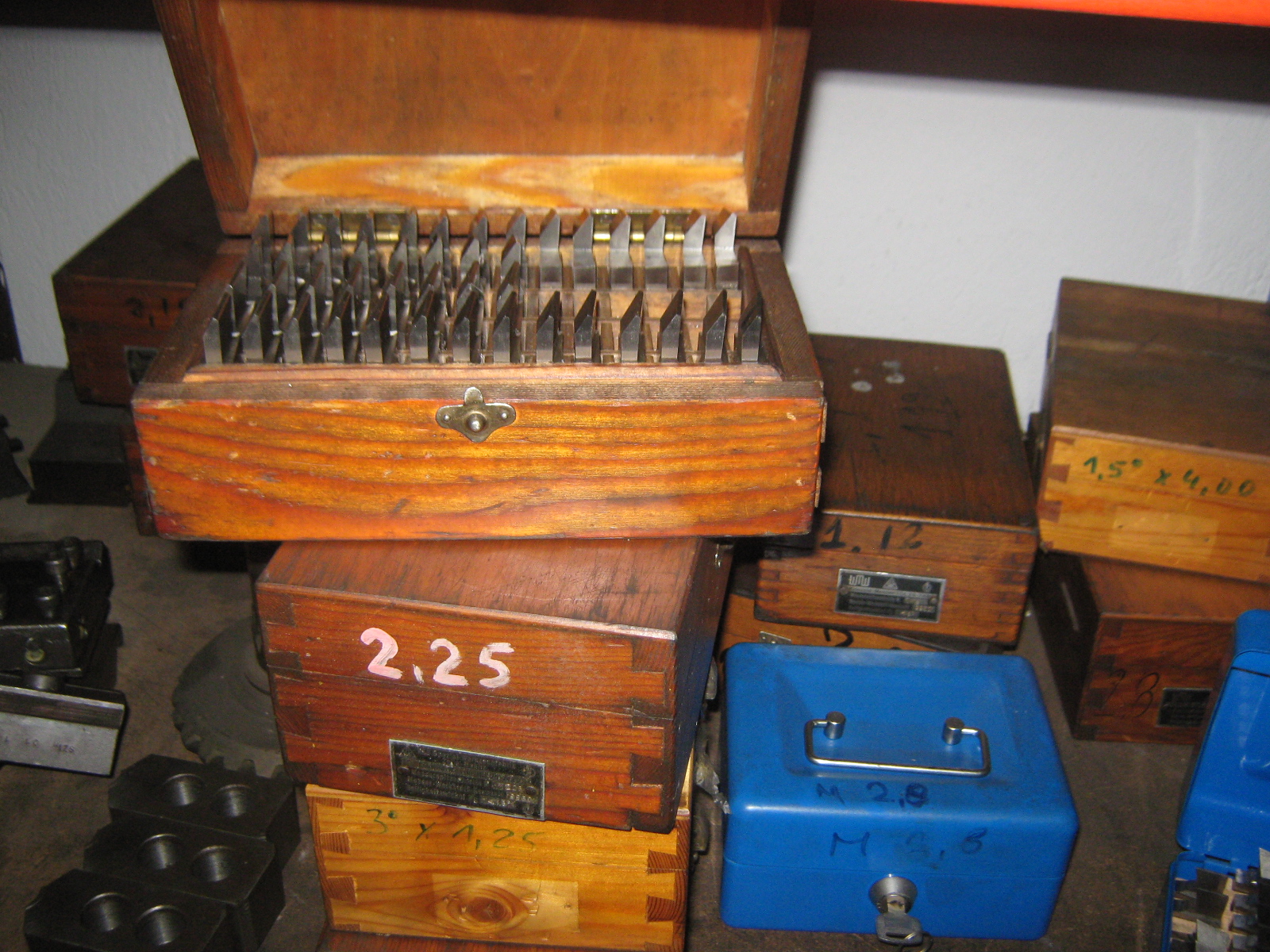

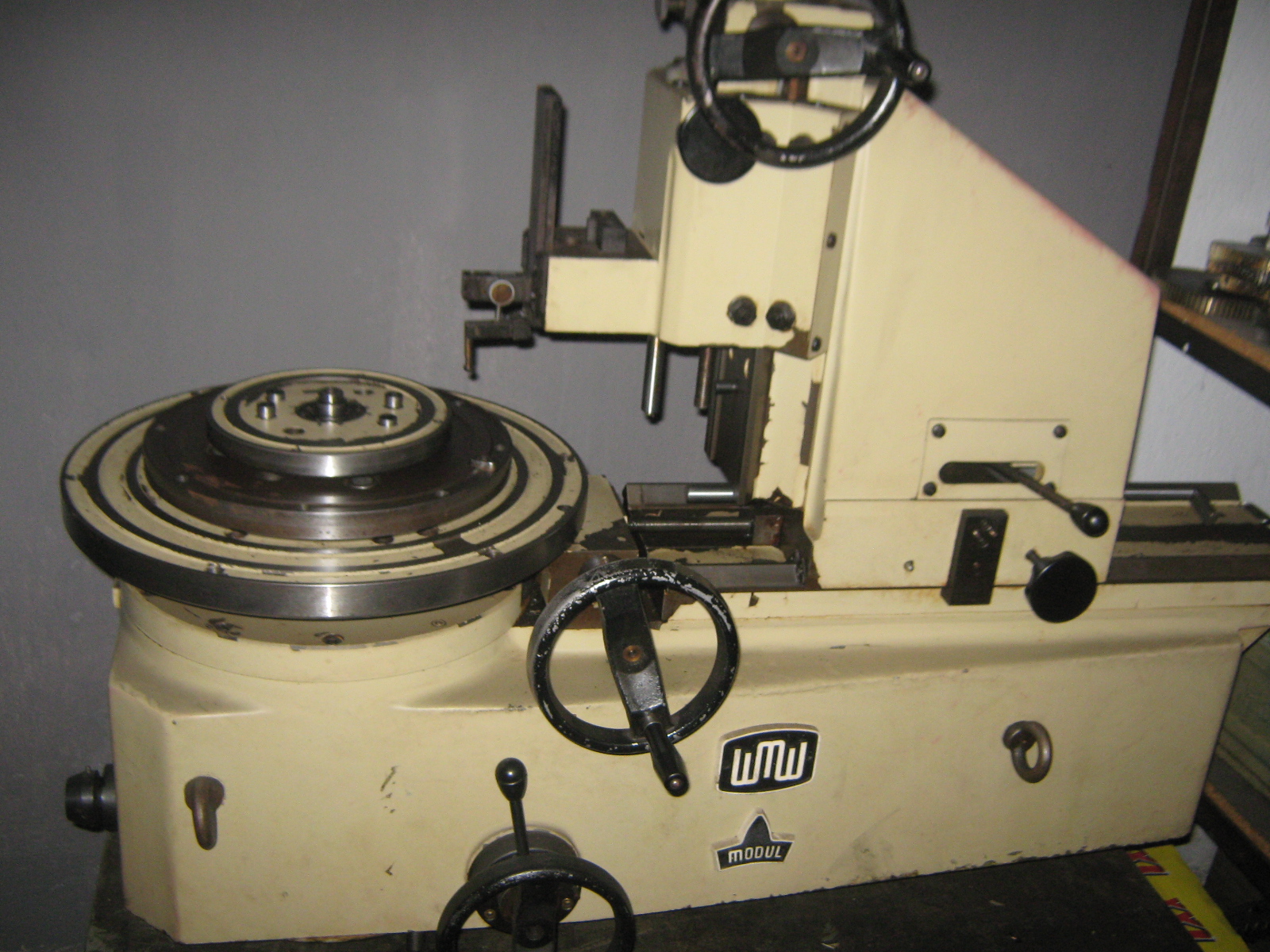

5. WMW Cutter heads adjustment machine
6. WMW Blade sharpening machine.
|
